Which class of amplifier has the lowest efficiency?

Theoretical power efficiency of class-D amplifiers is 100%. That is to say, all of the power supplied to it is delivered to the load, none is turned to heat. This is because an ideal switch in its “on” state would conduct all the current but have no voltage loss across it, hence no heat would be dissipated.

The figure shows that a traditional class D amplifier can reach 90 percent efficiency, but only for levels above 10 W (in this case, up to 40 W) — levels that are rarely reached by real-life audio signals for extended time-intervals.

Why are Class D amplifiers more efficient?

Class D amplifiers also are extremely efficient (often up to 90% or higher) because the output transistors are fully turned ON or OFF during operation. Therefore, there are no power losses in the output device. Class D amplifiers use metal-oxide-semiconductor field-effect transistors (MOSFETs) as switching devices.Oct 13, 2016

What class amplifier is most efficient?

The Class C Amplifier design has the greatest efficiency but the poorest linearity of the classes of amplifiers mentioned here. The previous classes, A, B and AB are considered linear amplifiers, as the output signals amplitude and phase are linearly related to the input signals amplitude and phase.

Is a Class D amplifier better?

Class A design is the least efficient but has the highest sound fidelity. Class B design is a little more efficient, but full of distortion. Class AB design offers power efficiency and good sound. Class D design has the highest efficiency but isn't quite as high-fidelity.

What is the efficiency of an amplifier?

All amplifiers have a certain predictable level of efficiency, and most class A/B amplifiers are between 20% to 60% efficient. That means that of all the power coming into the amplifier, 20% to 60% of that power is turned into sound and the other 80% to 40% is turned into heat.Nov 15, 1999

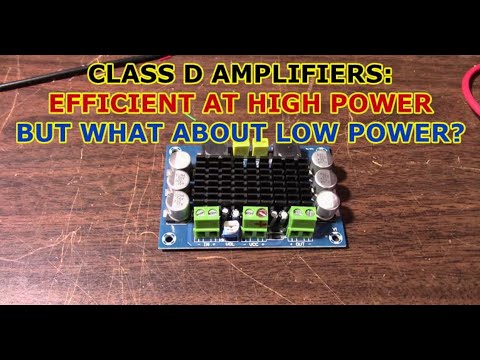

image-Which class of amplifier has the lowest efficiency?

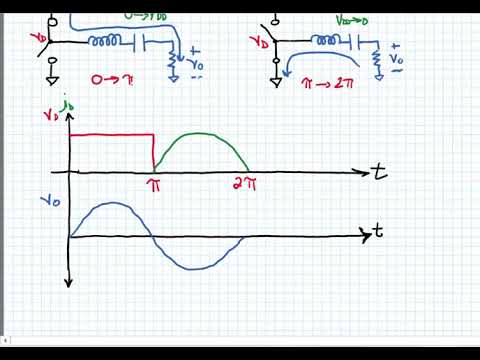

image-Which class of amplifier has the lowest efficiency?
Related

Are Class D amps good for subs?

The very best amplifier for a subwoofer is a class AB or Class H amplifier. Class D amplifiers are too slow and cannot keep up with repetitive bass. ... Buy the power amp that matches the subwoofer.Feb 5, 2020

Related

What are Class D amplifiers used for?

Class D amps, also known as “digital” amplifiers, work by shifting the sample frequency at which they operate up to extremely high frequencies. In doing so, they use MUCH smaller power transformers which takes up far less interior space—something that is always at a premium in subwoofers.Feb 27, 2018

Related

Do Class D amps use less power?

Thanks to a different topology (Figure 2), the Class D amplifier dissipates much less power than any of the above. Its output stage switches between the positive and negative power supplies so as to produce a train of voltage pulses.

Related

Are Class D amps better than AB?

The most common audio power amplifier operates in the Class-AB mode. It provides the greatest amount of output power with the least amount of distortion. ... Class-D amplifiers are switches that are more efficient and produce less heat than their Class-AB equivalents.Dec 9, 2019

Related

Are Class D amplifiers reliable?

As it turns out however, the best Class D amplifiers in 2020 are exceptionally good, so much so that the benefits they have always presented in terms of efficiency, longevity, thermal management and weight savings no longer come at the cost of any real sacrifice in audio quality.Jan 15, 2020

Related

What does class D mean?

Different driver's licenses can be used to operate different classes of vehicles. ... The most common is the passenger (Class D) license, which allows you to legally operate a passenger vehicle, van or small truck.

Related

Why Class D amplifiers may test well but often sound terrible?

So, while both amplifiers perform the same general task, the ways they accomplish this are as different as the way LPs and CDs play back sound. ... As we know, LPs drag a stylus over plastic, and CDs read a digital signal with a light source.Aug 29, 2005

Related

How do you calculate the efficiency of an amplifier?

Output power is the second important factor to calculate the efficiency of an amplifier. Take the formula P= V2/R, where V is the output voltage and R is the resistance. Simply take the square of speaker output voltages and divide it by the resistance (ohms).

Related

How efficiency of Class A amplifier can be improved?

To improve the full power efficiency of the Class A amplifier it is possible to design the circuit with a transformer connected directly in the Collector circuit to form a circuit called a Transformer Coupled Amplifier.

Related

What is the power efficiency of a Class-D amplifier?

  • Theoretical power efficiency of class-D amplifiers is 100%. That is to say, all of the power supplied to it is delivered to the load, none is turned to heat. This is because an ideal switch in its on state would conduct all the current but have no voltage loss across it, hence no heat would be dissipated.

Related

Can class D amplifiers be Class H boosted?

  • Multi-level output topologies and so-called Class D boosted designs that incorporate Class H amplifier (envelope tracking) techniques can improve the low-power efficiency of Class D amplifiers. But those increases in efficiency can come with increased complexity and more cost.

Related

What is a Class D amplifier like the max9701?

  • A Class D amplifier like the MAX9701 offers Class AB performance with Class D efficiency. The device's unique, filterless modulation scheme, synchronizable switching frequency, and spread-spectrum switching mode create a compact, flexible, low-noise, highly efficient audio power amplifier.

Related

How much power is dissipated in an audio amplifier?

  • For an audio amplifier with 10-W PLOAD max, an average PLOAD of 1 W can be considered a realistic listening level. Under this condition, 282 mW is dissipated inside the Class D output stage, vs. 2.53 W for Class B and 30.2 W for Class A. In this case, the Class D efficiency is reduced to 78%—from 90% at higher power.

Related

What is the maximum efficiency of a Class D audio amplifier?What is the maximum efficiency of a Class D audio amplifier?

Compared to Class A, Class B, and Class AB amplifiers, the Class D audio amplifier can reach an efficiency of up to 90-95%. Where the maximum efficiency of a Class AB amplifier is 60-65%, because they work on the active region and exhibits low power loss, if you multiply collector-emitter voltage with the current, you can find that out.

Related

What is an example of a Class D amplifier?What is an example of a Class D amplifier?

Given that large heat sinks are not required, Class-D amplifiers are much lighter weight than class A, B, or AB amplifiers, an important consideration with portable sound reinforcement system equipment and bass amplifiers. Output stages such as those used in pulse generators are examples of class-D amplifiers.

Related

How much power is dissipated in an audio amplifier?How much power is dissipated in an audio amplifier?

For an audio amplifier with 10-W PLOAD max, an average PLOAD of 1 W can be considered a realistic listening level. Under this condition, 282 mW is dissipated inside the Class D output stage, vs. 2.53 W for Class B and 30.2 W for Class A. In this case, the Class D efficiency is reduced to 78%—from 90% at higher power.

Related

What are the advantages and disadvantages of a Class-D amplifier?What are the advantages and disadvantages of a Class-D amplifier?

The major advantage of a class-D amplifier is that it can be more efficient than a linear amplifier, with less power dissipated as heat in the active devices.

Share this Post:
