What is the purpose of the swirl chamber?

Why swirl is required for CI engine combustion chamber?

Swirl is used in CI engine concepts to promote more rapid mixing between the inducted air charge and the injected fuel. Swirl is also used to speed up the combustion process and in two-stroke engines, it improves scavenging.

What is a precombustion chamber?

Definition of precombustion chamber

: an auxiliary space in which combustible gases are ignited and combustion started ahead of the main combustion chamber of a jet or gas engine The glow plug is an electrically operated device that protrudes into the precombustion chamber.

What is swirl and tumble?

Swirl in IC engines is the rotational motion of the incoming air charge about the cylinder's axis as it enters the combustion chamber on a two-valve head. Tumble in IC engines is the rotational motion of the incoming air/fuel charge in a plane approximately normal to the crankshaft on a four-valve head.Aug 14, 2020

Is port injection better than direct injection?

Port injection provides a better, more stable air/fuel mixture at lower engine speeds, which results in smoother operation upon startup. At higher rpm, direct injection provides a greater cooling effect, allowing for more power and less chance of knock.Mar 23, 2020

image-What is the purpose of the swirl chamber?
image-What is the purpose of the swirl chamber?
Related

Why are glow plugs kept working after the engine starts?

In some cars, in order to maintain compliance with emissions regulations, the glow plugs may be operated immediately after engine start, or during periods of extended idle where engine temperature has decreased, as combustion efficiency is greatly reduced when the engine is below operating temperature.

Related

What are the three methods of generating swirl in CI engine combustion chamber?

In the cylinder of a combustion engine, three common organized flows such as swirl, tumble and squish are generated by modifying intake ports, valves, cylinder head, piston surface and placing flow blockages, vanes in the intake ports.

Related

What is swirl generation?

Swirl is produced either in the inlet valve port itself or by masking, or shrouding, one side of the valve, or by a combination of both. This causes the air to flow spirally even before it passes the valve seat. ...

Related

What is delay period in CI engine?

The ignition delay period is also called the preparatory phase during which some fuel has already been admitted but has not yet ignited. This period is counted from the start of injection to the point where the pressure-time curve separates from the monitoring curve indicated as start of combustion.

Related

What is common rail fuel injection system?

Common rail is a fuel injection system found in modern diesel engines. ... In common rail systems, the fuel is supplied to the engine under pressure with electronically controlled precision. This provides a level of flexibility which can be exploited for class leading levels of emission control, power and fuel consumption.

Related

What are the two most commonly used types of diesel injection systems?

Diesel engines have historically used various forms of fuel injection. Two common types include the unit-injection system and the distributor/inline-pump systems.

Related

What is the purpose of fuel injector?

Fuel injectors control the volume of fuel delivered to the combustion chamber, ensuring the right amount is injected at the right time. The process is: The fuel pump pushes petrol or diesel through the fuel lines to the injectors.Dec 3, 2019

Related

What is squish and swirl?

Swirl is happening from the center of the piston outward, injection plumes are deflected and contained within the bowl. As the piston reaches top dead center we get squish. “It squishes, or squeezes out, the rotating gases into the combustion chamber.Jul 10, 2020

Related

What is tumble flow?

'Tumble flow' means cartwheel motion. In this technology, the air-fuel mixture enters the engine cylinder with a somersault or tumbling action. The advantage of Advanced Tumble Flow Induction Technology is that it delivers more efficient burning of fuel.Mar 16, 2019

Related

Which is better open or closed chamber heads?

Open and closed chamber cylinder heads differ in combustion chamber capacity. Although open chamber cylinders offer easier flow, the closed chamber cylinder is better for performance. Compression ratios are also affected by the size of the chambers.

Related

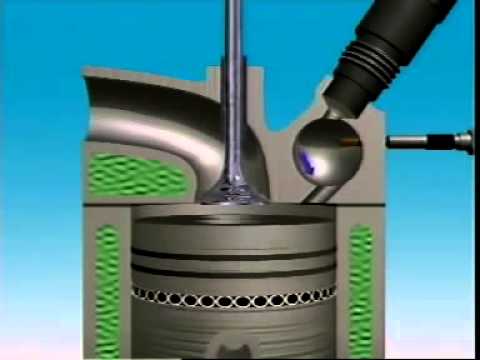

What is swirl chamber in engine?

  • Swirl Chamber. The swirl, or turbulence, chamber is similar in appearance to the precombustion chamber, but functions differently (Fig. 7-3). During compression, the disc-shaped or spherical antechamber imparts a circular motion to the air, which accelerates as the piston approaches tdc.

Related

What is Aqua-swirl ® technology?

  • Aqua-Swirl ® technology is a modular high flow rate treatment system that has no moving parts and operates under gravity flow conditions within a single swirl chamber. Aqua-Swirl ® systems are available in various models based on stormwater performance requirements:

Related

What is the difference between swirl and Ricardo chamber?

  • While the Ricardo chamber depends upon swirl for mixing, velocity is also important. Initially, these GM engines were set up with a small-diameter port between the main and swirl chambers. The pressure drop across the port generated velocity that, in conjunction with swirl, resulted in good air-fuel mixing and fuel economy.

Related

What is a turbulence chamber?

  • The swirl, or turbulence, chamber is similar in appearance to the precombustion chamber, but functions differently (Fig. 7-3). During compression, the disc-shaped or spherical antechamber imparts a circular motion to the air, which accelerates as the piston approaches tdc. The injector is timed to open at the peak of vortex speed.
