What is meant by direct online starter?

A DOL starter (also known as a direct on line starter or across the line starter) is a method of starting a 3 phase induction motor. In a DOL Starter, an induction motor is connected directly across its 3-phase

3-phase
The conductors between a voltage source and a load are called lines, and the voltage between any two lines is called line voltage. The voltage measured between any line and neutral is called phase voltage. For example, for a 208/120 volt service, the line voltage is 208 Volts, and the phase voltage is 120 Volts.
https://en.wikipedia.org › wiki › Three-phase_electric_power
supply, and the DOL starter applies the full line voltage to the motor terminals.May 3, 2021

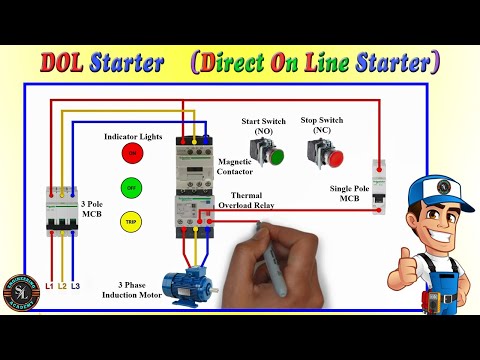

Direct On Line Starter Method is a common method of starting of Cage Induction Motor. The motor is connected through a starter across the full supply voltage. The Direct On Line Starter Method figure is shown below. It consists a coil operated contactor C controlled by start and stop push button as shown in the connection diagram below.

For which type of motors the direct on line starting can be used?

One of the simplest forms of motor starter that is used for induction motors is the Direct On Line starter. It consists of an MCCB or Circuit Breakers, Contactor and an overload relay for protection.Jul 24, 2020

For what size of motor direct online starter is generally used?

For starting medium and high voltage motor, the circuit breaker is used as switching devices instead of electrical contactors. DOL starter is the simplest form of motor starter which is used for smaller size motor typically below 10HP.

What is the difference between DOL and Star Delta?

In the DOL starter, it is possible to start a motor with a simple circuit. ... This can be further explained that in a Star-Delta starter, the motor is started as a star connection and when the motor starts running the connection is changed to the delta. With star connection, the motor takes times less voltage.

Does a motor run faster in Star or Delta?

The speeds of Star connected motors are slow as they receive 1/√3 voltage. The speeds of Delta connected motors are high because each phase gets the total of line voltage.

image-What is meant by direct online starter?
image-What is meant by direct online starter?
Related

How does DOL starter reduce starting current?

A star delta starter reduces the starting current by connecting the motor winding in Star at the time of starting. This reduces the voltage across the winding. The voltage across the winding will be( 1/Sqrt(3))*Line Voltage.May 5, 2020

Related

What is difference between soft starter and VFD?

The main difference between the two is that a VFD can vary the speed of a motor while a soft starter only controls the starting and stopping of that motor. When faced with an application, price and size are in the favor of a soft starter. A VFD is the better choice if speed control is required.May 20, 2019

Related

How many types of starters are there?

The two main types of starters are Manual Starters and AC Magnetic Motor Starters, commonly known as Motor Starters. The manual starter is operated manually.

Related

Can we use DOL starter for 10 hp motor?

This kind of starter is required to start more than 10 HP motor. Main use of this starter is to reduce the starting current. Due to this reduced voltage starting current is limited. ...

Related

For which motors DOL starters can be used?

2. For which motors DOL starter can be used? Explanation: DOL starters are limited to the small rating motors where distribution system (mains supply) can withstand high starting currents without excessive voltage dips.

Related

Where is star delta starter used?

What Is a Star Delta Starter? Star delta starters are another device that may be used to reduce current demand during motor startup. It is often used for starting three-phase induction motors, but can only be used when starting the motor without load and when the required starting current is relatively low.

Related

What is the advantage of direct on line?

The advantages of a DOL starter include: Simple and most economical starter. More comfortable to design, operate and control. Provides nearly full starting torque at starting.May 3, 2021

Related

What is a direct on line starter motor?

  • What is DOL Starter. A DOL starter (or Direct On Line starter or across the line starter) is a method of starting of a 3 phase induction motor. In DOL Starter an induction motor is connected directly across its 3-phase supply, and the DOL starter applies the full line voltage to the motor terminals.

Related

What is direct online starter (Dol)?

  • Direct online starter (DOL) connects 3-phase motors directly across 3-phase supply, and the beauty of this type of starter is in spite of motor connected straight, it doesn’t cause any harm to the motor. Mainly it consists of the main contacts and protective device.

Related

What is an on line starter used for?

  • Direct on line starters are commonly used to start small water pumps, conveyor belts, fans, and compressors. In the case of an asynchronous motor (such as the 3-phase squirrel-cage motor) the motor will draw a high starting current until it has run up to full speed.

Related

What are the two buttons on a direct online starter?

  • A direct online starter consits of two buttons, a GREEN button for starting and a RED for stopping purpose of the motor. The DOL starter comprises of an MCCB or circuit breaker, contactor and an overload relay for protection. These two buttons, i.e. Green and Red or start and stop buttons control the contacts.

Related

What is a direct on line motor starter?What is a direct on line motor starter?

The simplest form of motor starter for the induction motor is the Direct On Line starter. The Direct On Line Motor Starter (DOL) consist a MCCB or Circuit Breaker, Contactor and an overload relay for protection.

Related

What is a direct on line starter (Dol)?What is a direct on line starter (Dol)?

Direct On Line Motor Starter (DOL) is suitable for: A direct on line starter can be used if the high inrush current of the motor does not cause excessive voltage drop in the supply circuit. The maximum size of a motor allowed on a direct on line starter may be limited by the supply utility for this reason.

Related

Why is the starting current in a direct on line starter zero?Why is the starting current in a direct on line starter zero?

Direct on line starters are commonly used to start small motors, especially 3 phase squirrel cage induction motors. As we know, the equation for armature current in the motor. The value of back emf (E) depends upon speed (N), i.e. E is directly proportional to N. At starting, the value of E is zero. So starting current is very high.

Related

What is the principle of direct online starter?What is the principle of direct online starter?

Principle of DOL Starter: The Direct Online starter works on full voltage or across-the-line technique where the motor is directly connected to the full voltage supply. Since there is no voltage reduction, the starting current is very high that leads to high starting torque.
