What is a voltage balun?

What is the difference between a current and a voltage balun?

In a voltage balun, load impedance directly affects core heating and flux density. Current baluns, rather than voltage baluns, should be used whenever possible. Current baluns provide better balance and often have lower loss.

What does a balun do?

A balun is a type of transformer: it's used to convert an unbalanced signal to a balanced one or vice versa. Baluns isolate a transmission line and provide a balanced output. A typical use for a balun is in a television antenna.

Why do I need a balun?

Why Do I Need A Balun? A balun is used to help set up antennas in your home or place of business. If you're installing a dipole antenna or one with a wire, you'll need a balun to balance the transmission line.

Do dipoles need a balun?

Because dipoles are balanced and common feed cable, like coax is not. To get maximum signal transfer a balun is required, but typically on say a FM receiving antenna, the signal strength is so strong that it can be omitted in the interest of cost.

image-What is a voltage balun?

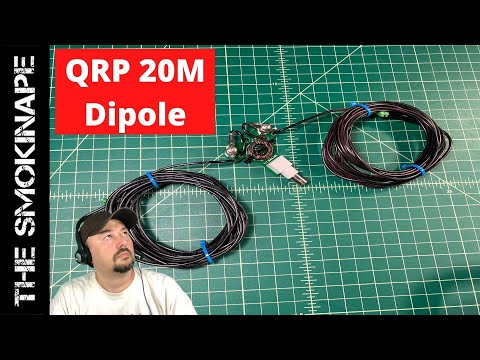

image-What is a voltage balun?
Related

When should I use an antenna balun?

Baluns are used in many areas to transition between balanced & unbalanced scenarios: one key area is for radio frequency, RF applications for antennas. RF baluns are used with many antennas and their feeders to transform a balanced feed or line to an unbalanced one.

Related

What does a 1 to 1 balun do?

Key uses for the 1:1 current-balun: a) is to marginalize the “inverted-L current” in the transmission-line feeding a dipole-antenna. This will prevent a radiating Feedline and prevent distorting the antenna's radiation pattern. There will be some flux in the core but it'll be minor due to the small current causing it.Oct 18, 2018

Related

Why is coax unbalanced?

Coaxial cable is unbalanced line because current in center conductor is referenced to braid. The braid conductor is connected to the ground. ... Out of the two transmission line types, coaxial cable is widely used.

Related

What is a HDMI balun?

The balun allows you to extend HDMI far beyond that of regular HDMI cables using standard Ethernet networking cables. We'll cover the basics and the options when deciding on which balun is right for HDMI distribution.

Related

How do you attach a balun to an antenna?

Usually you would make a loop with the end of the antenna wire through the eyelet and then wrap the loose end around the antenna wire. The pig tail lead from the balun is then wrapped around the antenna wire and soldered.Apr 1, 2014

Related

How do I know if I need a balun?

Firstly, we will need a balun to use a balanced line feeder or balanced antenna in any case as radios today are not presenting a balanced output. The next point is the effect that any close by objects have on the balanced feed line, walls, buildings in general, towers, all metal objects, ground, everything!Apr 10, 2018

Related

What's the difference between a voltage balun and a current balun?

  • A voltage balun almost certainly guarantees some feedline radiation (or reception), because there are very few "perfectly balanced" loads or perfect voltage baluns. Unlike a 1:1 ratio current balun, a voltage balun will always magnetize its core in direct proportion to load voltages.

Related

Can I use a choke balun with a voltage balun?

  • A voltage balun needs to be trifilar. Yes, there’s no reason why you can’t use a choke balun, although if you are matching a 50r load to a 50r feed to a true balanced antenna, I would prefer to use a voltage balun.

Related

What is the difference between DxE baluns and current baluns?

  • Current baluns can also be used as isolators or un-un's. Unless otherwise noted, DXE Baluns are current-type baluns. Antenna systems requiring antenna tuners or matching networks often have very high voltages or currents on transmission lines and baluns, even at modest power. In many cases, voltage and current are not in phase with each other.

Related

What is a good impedance ratio for transformer balun?

  • DOUBLE SIDED TRANSFORMER BALUN (4:1 or anything:1 impedance match) MORE ON TRANSFORMERS, CURRENT, VOLTAGE, IMPEDANCE ETC. Call them all something else if you like.
