What is a gear tooth sensor?

What are speed sensors used for?

The speed sensor, an essential component for the operation of several on-board systems, allows the magnetic rotation speed to be measured in order to provide a voltage corresponding to the rotation speed. It is widely used in the aeronautics, automotive and precision engineering sectors.

What type of sensor is a Hall effect sensor?

Hall sensors are linear transducers. Such sensors require a linear circuit for processing the sensor output signal. This circuit provides the drive voltage for the sensor and is used to amplify the output signal.

How does a Hall effect sensor work and how is it different from a magnetic sensor?

Magnetic sensors are used to change electrical signals after detecting a magnetic state. ... A Hall sensor detects the strength of a magnetic field perpendicular to it, whereas an MR sensor detects the angle of a parallel magnetic field.

What are symptoms of a bad speed sensor?

Transmission problems

Vehicle speed information relayed by the VSS is used by the transmission control module (TCM) or powertrain control module (PCM) to determine shift timing. Therefore, a failing speed sensor will have a direct impact on automatic transmission operation.
May 5, 2020

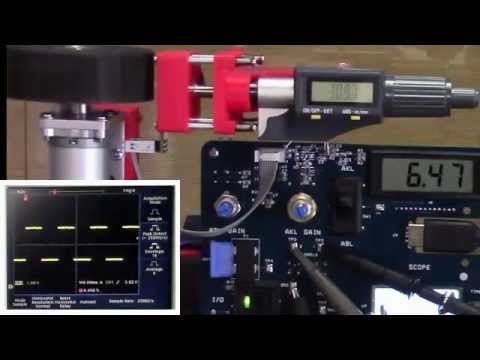

image-What is a gear tooth sensor?

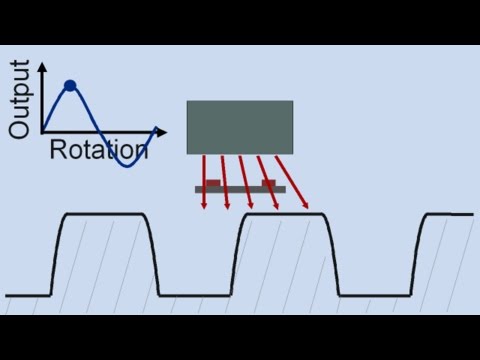

image-What is a gear tooth sensor?

Can a bad speed sensor cause stalling?

This sensor controls ignition timing of the engine and when it fails the computer does not know when to ignite the cylinder causing the engine to stall and not start correctly.Jan 14, 2016


Where is speedometer sensor?

Hello, the speed sensor for the speedometer is located on the transmission at the rear extension housing. The housing is the part that the driveshaft slip yoke (front part of driveshaft) would be position at. The sensor is attached with a bolt that needs to be removed, it has a two wire connector going to it.Oct 13, 2016


What is Hall effect and its uses?

Whenever we place a current carrying conductor in a magnetic field, there is a deflection of the charge carriers due influence of magnetic field in the conductor body. We call this typical phenomenon as Hall effect. Edwin Hall in 1879 had first observed the phenomenon, and hence we call this as Hall effect.Oct 28, 2020


What does Hall effect measure?

The Hall effect is the production of a voltage difference (the Hall voltage) across an electrical conductor that is transverse to an electric current in the conductor and to an applied magnetic field perpendicular to the current. It was discovered by Edwin Hall in 1879.


How many types of Hall sensors are there?

There are two types of Hall effect sensors: Devices with linear (or analogue) outputs, and those that have digital outputs. Analogue sensors use a continuous voltage output that increases within a strong magnetic field and decreases in a weaker field.


What is the range of a Hall effect sensor?

Output Characteristics

It ranges from 0V to VCC according to the direction of the magnetic field. The output voltage when there is no vertical magnetic field is VCC/2 (*3).


How does a Hall effect Flow sensor work?

So, how does a Hall effect sensor work? Using semiconductors (such as silicon), Hall effect sensors work by measuring the changing voltage when the device is placed in a magnetic field. In other words, once a Hall effect sensor detects that it is now in a magnetic field, it is able to sense the position of objects.


What are the advantages and disadvantages of using Hall effect sensors?

When packed immune to dust, air, water where as capacitive sensor may get triggered by dust. It can measure zero speed. Non contact operation so there is no wear and friction, hence unlimited number of operating cycles. Highly repeatable operation.Aug 18, 2017


How does the gear sensor work?

  • Function. The gear position sensor,typically located on the transmission selector shaft or steering column mounting,consists of a series of switches,or electronic devices that either direct or divert ...
  • Starter Operation. ...
  • Considerations. ...


What is tooth on a gear?

  • A gear tooth is a protrusion on a gear which is designed to mesh with compatible teeth on another gear or rack.


What is a gear tooth profile?

  • The gear tooth profile is based on the epicycloid and hypocycloid curves, which are the curves generated by a circle rolling around the outside and inside of another circle, respectively.


What is the gear sensor?

  • The gear position sensor, typically located on the transmission selector shaft or steering column mounting, consists of a series of switches, or electronic devices that either direct or divert power to circuits.
