What is a current transformer used for?

A donut transformer is commonly used when AC current lev- els to be monitored exceed 75 amperes. Current trans- former rated 100:5 will provide a secondary current of 5 AC amperes when a single primary turn is passed through the donut with a 100 ampere load.

bakersfieldads.net
Current Transformers are devices which convert high power signals to lower, more manageable signals. The most common type of transformer is the “donut style” transformer. This transformer is a ring which encircles the wire carrying the signal and via induction transmits a proportional signal through two leads attached to the donut.

What is toroidal current transformer?

Toroidal transformers are power transformers with a toroidal core on which the primary and secondary coils are wound. When a current flows through the primary, it induces an electromotive force (EMF) and then a current in the secondary winding, thereby transferring power from the primary coil to the secondary coil.Aug 14, 2018

Why is CT short circuited?

Unless a burden (i.e. meters, relays, etc.) is connected to the CT, current transformers should always be shorted across the secondary terminals. The reason is very high voltages will be induced at the terminals. Think of the CT as a transformer, with a 1 turn primary and many turns on the secondary.

What is Mr current transformer?

MR Current transformer is a very useful device, it converts high AC current to small easily manageable value. If current transformers have no busbar, they are manufactured without primary winding. ... error at the rated current perscribed for the accuracy class concerned.

What is the difference between a current transformer and a voltage transformer?

One of the major difference between them is that the current transformer converts the high value of current into low value whereas the potential or voltage transformer converts the high value of voltages into low voltage.

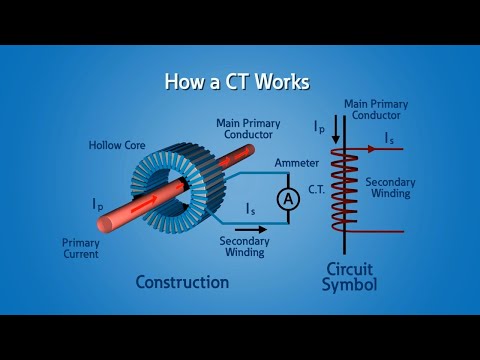

image-What is a current transformer used for?

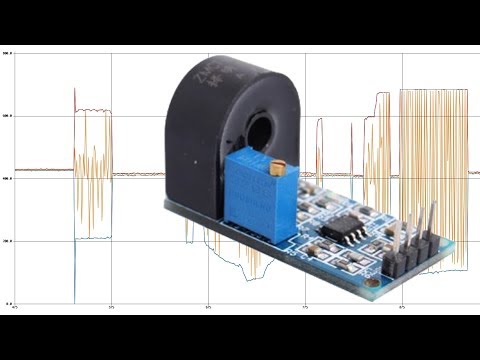

image-What is a current transformer used for?
Related

Are toroidal transformers better for audio?

Their major advantage is that they do not radiate much of a magnetic field--a very useful property. ... While toroidal transformers have one significant advantage regarding radiated magnetic fields, toroids have a number of "problems" that severely limit their performance in high-quality audio equipment.

Related

What do toroids do?

The toroids are used to step down or step up a voltage. Circuits, such as power supplies, amplifiers, and inverters, use toroids. Additionally, electrical equipment, such as computers, televisions, audio systems, and radios, use toroid coils.

Related

What are the types of current transformer?

The three types of current transformers in general use are the window, bar, and wound.Jul 8, 2021

Related

Why CT should not be open?

If the primary circuit has current flowing the secondary circuit should never be opened. This can cause very high voltages to occur due to the Ampere-Turns of the primary that start magnetizing the core. While it is acting as a transformer it will cause very high voltage peaks. ...

Related

What happens if CT is open circuited?

If CT is kept open-circuited, no current will flow in the secondary, and consequently, no secondary flux will be set up in the core. In absence of secondary current, the net flux will be higher than the flux generated in the core when CT is connected to load.Sep 12, 2018

Related

Why CT secondary is earthed?

Because the primary depends on the secondary, when the secondary connection gets grounded or shorted, then it takes little voltage for the primary to operate. ... If the secondary is not connected to a load, then it tries to maintain the counter magnetic field, and voltage levels may skyrocket.Jun 26, 2019

Related

What is difference between 5P10 and 5P20?

Its application which differetiate the use of 5P10 and 5P20. If the breaker is used for backup protection say incommer etc you can use 5P20, but if it is say an incommer ACB/ MCCBof PMCC, you should use 5P10 only.Jul 8, 2013

Related

What is current transformer ratio?

Ratio. The CT ratio is the ratio of primary current input to secondary current output at full load. For example, a CT with a ratio of 300:5 is rated for 300 primary amps at full load and will produce 5 amps of secondary current when 300 amps flow through the primary.

Related

What is 5P10 in current transformer?

If you see the specification or name plate of a protection class CT, you will find that it is given like 5P10. This CT can be interpreted as a protection class CT having an accuracy of 5% over a current range of 10 times of normal primary current rating.Jan 6, 2018

Related

What are the functions of a current transformer?

  • A transformer's function is to maintain a current of electricity by transferring energy between two or more circuits. This is accomplished through a process known as electromagnetic induction.

Related

How does current transformer measure current?

  • A CT for operation on a 110 kV grid. A current transformer (CT) is a type of transformer that is used to measure alternating current (AC). It produces a current in its secondary which is proportional to the current in its primary.

Related

What is the use of current transformer?

  • Current Transformer is used to measure the current in transmission lines or wherever high current applications are present. A current transformer is basically a Step-Down current transformer (Step-up in the case of voltage) which steps down current at low value and can be measured using several devices.

Related

Can transformer change current?

  • So, for a transformer, there must be change in magnetic field, and this is only possible with alternating current, and not direct current. Alternating current in the primary coil produces alternating (changing) magnetic field, which in turn is experienced in the secondary coil.

Related

What is the purpose of a donut transformer?What is the purpose of a donut transformer?

A donut transformer is commonly used when AC current lev- els to be monitored exceed 75 amperes. Current trans- former rated 100:5 will provide a secondary current of 5 AC amperes when a single primary turn is passed through the donut with a 100 ampere load. The donut transformer pro- vides additional isolation from the conductor.

Related

What is a CT transformer?What is a CT transformer?

A current transformer ( CT) is a type of transformer that is used to reduce or multiply an alternating current (AC). It produces a current in its secondary which is proportional to the current in its primary.

Related

What is a current transformer?What is a current transformer?

Current Transformers are devices which convert high power signals to lower, more manageable signals. The most common type of transformer is the “donut style” transformer. This transformer is a ring which encircles the wire carrying the signal and via induction transmits a proportional signal through two leads attached to the donut.

Related

What is a 1A current transformer?What is a 1A current transformer?

A current transformers primary coil is always connected in series with the main conductor giving rise to it also being referred to as a series transformer. The nominal secondary current is rated at 1A or 5A for ease of measurement.
