How does a piezo actuator work?

What are piezo actuators?

Piezoelectric actuators (transducers) are precision ceramic actuators which convert electrical energy directly into linear motion with high speed, force and virtually unlimited resolution.

Is a piezo a sensor or actuator?

Piezo actuators convert electrical energy to mechanical energy. This is why they are referred to as “motors” (often linear motors). Piezo sensors convert mechanical energy into electrical energy.

What are piezoelectric actuators made of?

Conversely, an applied electric field in a piezoelectric material produces dimensional changes and stresses with the material (inverse piezoelectric effect). Quartz and zinc blende are natural piezoelectric crystals. The most common materials for piezo actuator are modified lead zirconate titanate (PZT) ceramics [58].

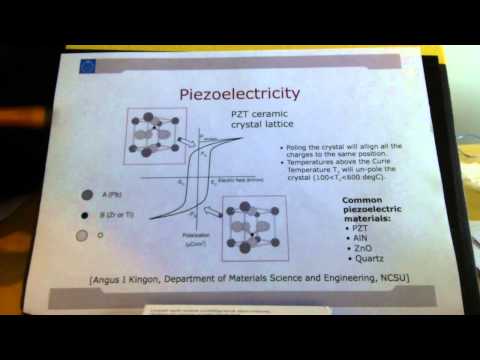

Why does the piezoelectric effect happen?

The piezoelectric effect results from the linear electromechanical interaction between the mechanical and electrical states in crystalline materials with no inversion symmetry. ... Conversely, those same crystals will change about 0.1% of their static dimension when an external electric field is applied.

image-How does a piezo actuator work?
image-How does a piezo actuator work?
Related

What is piezoelectric buzzer?

Piezoelectric Sounders / Buzzers are sound components prepared by incorporating a piezoelectric vibration plate in a plastic case (resonator). ... Piezoelectric buzzers are sound components which generate a monotone using a built-in oscillation circuit.

Related

Are piezo actuators series or parallel?

Individual piezo elements in a stacked actuator have alternating polarity, and the electrical field is applied parallel to the direction of polarization.Nov 5, 2015

Related

What is the use of piezoelectric sensor?

Piezo sensors are used within many sensors and devices. They are used to convert a physical parameter; for example acceleration or pressure, into an electrical signal. Piezo sensors are used to measure the change in pressure, acceleration or strain by converting them into electrical charge.Jan 13, 2020

Related

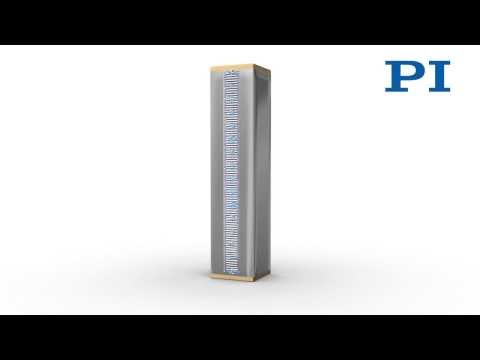

What is piezo stack?

A low voltage piezoelectric stack is a monolithic ceramic construction of many thin piezoceramic layers which are connected in parallel electrically. The principal characteristics of the stack are: a high energy conversion efficiency, low voltage operation, large force, low motion, fast response, and no EMI.

Related

How do you choose a piezo?

The key to choosing a good piezoelectric harvester is to match the power output from the device to your power budget (Step 2: 2 mW from above). The power output will be highest when the harvester's natural frequency is matched to that of the vibration source.

Related

How does piezoelectric accelerometer work?

A piezoelectric accelerometer consists of a mass attached to a piezoelectric crystal which is mounted on a case. When the accelerometer body is subjected to vibration, the mass on the crystal remains undisturbed in space due to inertia. As a result, the mass compresses and stretches the piezoelectric crystal.Jun 10, 2015

Related

How do you drive a piezoelectric actuator?

In order to drive a piezo through an amplifier, you need to put a signal into the amplifier, and the maximum voltage range of that input signal needs to be within the amplifier's input voltage range. This is typically between 1V and 5V.

Related

What do actuators do?

An actuator is a device that uses a form of power to convert a control signal into mechanical motion. ... Industrial plants use actuators to operate valves, dampers, fluid couplings, and other devices used in industrial process control. The industrial actuator can use air, hydraulic fluid, or electricity for motive power.

Related

What are piezoelectric actuators?

  • The piezoelectric actuator is a form of micro-control electro-mechanical system. It relies on the piezoelectric effect with some crystals such that, when an electrical field is applied to the crystal, it creates mechanical stress in its structural lattice which can be translated into movement at a micrometer or nanometer scale.

Related

Can a piezo actuator have infinite resolution?

  • High-load piezo actuators capable of moving loads of several tons are available. They can cover travel ranges to 300 μm with resolutions in the subnanometer range. The piezo ceramic itself works free of friction and theoretically has unlimited resolution.

Related

How does piezo injector work?

  • Piezo injectors use piezoelectric technology to open and close fuel injectors at extremely high speeds and precision to inject fuel into an internal combustion engine. These injectors are used in both petrol and diesel engines to improve their persformance and efficiency.

Related

Why choose Pipi ceramic actuators?Why choose Pipi ceramic actuators?

PI Ceramic offers a large number of piezoelectric actuators for applications in industry and research. PICMA® Piezo Linear Actuators PICMA® Piezo Linear Actuators. PICMA® multilayer actuators for an up to 10 times higher lifetime and operating time than conventional multilayer piezo actuators.

Related

What is pica power piezo actuator?What is pica power piezo actuator?

PICA Power piezo actuators are made of a piezo material that allows for a higher operating temperature and thus higher dynamics. Piezo amplifiers for PICA Actuators offer a voltage range of up to 1100 V, which is available as unipolar or bipolar voltage.

Related

What is the Picma® stack actuator?What is the Picma® stack actuator?

The PICMA ® Stack piezo linear actuators from PI Ceramic feature linear displacements with low piezo voltages. Encapsulated versions for operation with splash water or oil are available. The miniature actuators PICMA ® Chip with a height of only 2 mm are also offered as round version with inner hole.

Related

Which piezo actuators are suitable for implantable medical products?Which piezo actuators are suitable for implantable medical products?

PICMA® multilayer piezo actuators, in particular PICMA® Bender actuators, are highly suitable for implantable medical products. Metering with Piezo Valves Metering with Piezo Valves. Piezo valves are highly suitable for dosing tasks: They can switch directly, and can also work against a closing spring.
