How do I show my workspace in Simulink?

The From Workspace block reads data into a Simulink ® model from a workspace and provides the data as a signal at the block's output. You can load data from the base workspace, model workspace, or mask workspace. You can use the From Workspace block to load signal data into any model or subsystem in a model hierarchy from a workspace ...

How do you plot a graph from Simulink workspace?

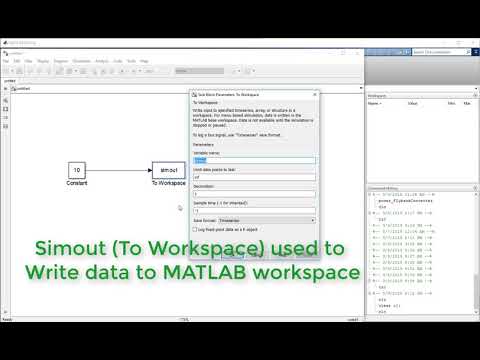

you can find the "To Workspace" in simulink library. Just connect to the graph which you wan to plot. After that go to command window and type Plot( file name of To workspace) and enter you will find the graph .

What is base workspace and model workspace?

Model Workspace Differences from MATLAB Workspace

The model workspace is similar to the base MATLAB® workspace except that: Variables in a model workspace are visible only in the scope of the model. ... The data source can be a Model file, a MAT-file, a MATLAB file, or MATLAB code stored in the model file.

How does workspace work in MATLAB?

The workspace contains variables that you create or import into MATLAB from data files or other programs. You can view and edit the contents of the workspace in the Workspace browser or in the Command Window. For more information, see Create and Edit Variables. Workspace variables do not persist after you exit MATLAB.

What is base workspace in MATLAB?

The base workspace stores variables that you create at the command line. This includes any variables that scripts create, assuming that you run the script from the command line or from the Editor. Variables in the base workspace exist until you clear them or end your MATLAB® session.

image-How do I show my workspace in Simulink?
image-How do I show my workspace in Simulink?
Related

What is tunable parameter in Simulink?

A tunable global parameter is a MATLAB variable that you reference in a Simulink block dialog box. You can tune a global parameter or object by using a block dialog box, Dashboard blocks, Property Inspector, Model Explorer, Model Data Editor, or MATLAB language.

Related

What is Simulink signal?

In Simulink®, signals are the outputs of dynamic systems represented by blocks in a Simulink diagram and by the diagram itself. The lines in a block diagram represent mathematical relationships among the signals defined by the block diagram. ... The simulation order is determined by Simulink automatically.

Related

How do I export a Simulink graph?

You first want to export the data from Simulink to the MATLAB workspace. This can be done via the simout block. The next step is to export the data from the MATLAB workspace to Excel using the xlswrite command command.

Related

How do I add axis labels in Simulink?

You can add axes names from Insert >> X Label and Insert >> Y Label.

Related

What is Simulink workspace in MATLAB?

  • Simulink Reference. The From Workspace block reads data from the MATLAB workspace. The block's Data parameter specifies the workspace data via a MATLAB expression that evaluates to a matrix (2-D array) or a structure containing an array of signal values and time steps.

Related

How does the from workspace block work in MATLAB?

  • The From Workspace block reads data from the MATLAB workspace. The block's Dataparameter specifies the workspace data via a MATLAB expression that evaluates to a matrix (2-D array) or a structure containing an array of signal values and time steps.

Related

How do I refresh Simulink customizations in MATLAB?

  • Refresh Simulink customizations at the MATLAB command prompt. Open the Lookup Table Editor for your lookup table block and select File > Update Block Data. Click Yes to overwrite the workspace variable table3d_map_custom. Check the value of table3d_map_custom in the base workspace.

Related

When does Simulink use the value of a variable in MATLAB?

  • If both the MATLAB workspace and a model workspace define a variable of the same name, and the variable does not appear in any intervening masked subsystem or model workspaces, the Simulink ® software uses the value of the variable in the model workspace.

Related

How to get data from workspace to Simulink?How to get data from workspace to Simulink?

You can use simulink block "From Workspace". Search in the simulink library if required. Your data from the workspace must have at least 2 columns, i.e. 1. Time stamp 2. Signal Both column vectors must have with the same dimension if not error message will pop out.

Related

What is the difference between to workspace and during simulation?What is the difference between to workspace and during simulation?

During simulation, the block writes data to an internal buffer. When you pause the simulation or the simulation completes, that data is written to the workspace. Data is not available until the simulation pauses or stops. The To Workspace block typically writes data to the MATLAB ® base workspace.

Related

How does the from workspace block work in MATLAB?How does the from workspace block work in MATLAB?

The From Workspace block reads data from the MATLAB workspace. The block's Dataparameter specifies the workspace data via a MATLAB expression that evaluates to a matrix (2-D array) or a structure containing an array of signal values and time steps.

Related

How do I interpolate data from a workspace?How do I interpolate data from a workspace?

The From Workspace block's Interpolate data parameter determines the block's output in the time interval for which workspace data is supplied. If the Interpolate data option is selected, the block interpolates between data values for time steps that occur between the times for which data is supplied from the workspace.
